家庭储能控制板测试系统DW6000-CTR
- 产品描述
-
家庭储能控制板测试系统DW6000-CTR

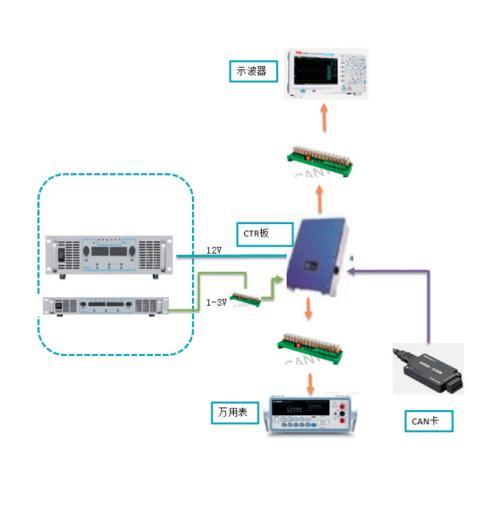

1、测试1个产品，单边测试 Test 1 product
供电:12V 电源、1-3V 电源 Power supply: 12V power supply, 1-3V power supply
2.测试内容Test Items
>DCDC_DSP-3.3V 电源 Power >继电器驱动检测Relay Drive detection
> DCAC_DSP_3.3V 电源 Power > DC_AUXILIARY_RELAY_DRV_1 继电器驱动检测 Relay Drive detection
> 正 12 电源 Positive 12 power > LOAD_RLY_L 继电器驱动检测 Relay Drive detection
> 负 12V 电源 Negative 12V power supply > LOAD_RLY_N 继电器驱动检测 Relay Drive detection
> 5V 电源 Power > INV-RLY_N 继电器驱动检测 Relay Drive detection
> 1.65V 基准 Benchmark > INV-RLY_L 继电器驱动检测 Relay Drive detection
> 3v3 基准 Benchmark > GRID_RLY_L 継电器驱动检测 Relay Drive detection
>测试模式Test Modie > GRID_RLY_N 继电器驱动检测 Relay Drive detection
> can 通讯 CAN Bus communication > AC_RLY 继电器驱动检测 Relay Drive detection
> DCDC_EPWM1A 检测 Check > ISO_RLY1 继电器驱动检测 Relay Drive detection
> DCDC_EPWM1B 检测 Check > ISO_RLY2 继电器驱动检測 Relay Drive detection
> DCDC_EPWM1A_1 检测 Check > CT_ZJ 漏电流驱动检測 Leakage current drive detection
> DCDC_EPWM1B_1 检测 Check >DC/DC母线电压采样、欠压采样' 母线电流采样
> DCDC_EPWM3A 检测 Check DC/DC bus voltage sampling, undervoltage sampling, bus current sampling
> DCDC_EPWM3B 检测 Check > 48V_SIDECURRENT采样、电压检测、电池电压过压
> DCDC_EPWM4A 检测 Check 48V_SIDECURRENT Sampling, voltage detection, battery voltage overvoltage
> DCDC_EPWM4B 检测 Check > 温度检测 Temperature detection
> DCAC_VGS_H2 检测 Check > DC/AC 母线低电压釆样 Low voltage sampling of bus bar
> DCAC-VGS_L2 检测 Check > LLC 母线电压、电流采样 Sampling of bus voltage and current
> DCAC_VGS_H1 检测 Check > PV1 电压 Voltage、PV2 电压 Voltage
> DCAC_VGS_L1 检测 Check > DC/AC H网电压.并网继电器电压、电网电压采样、电网>电流、逆变电压、逆变电流、过流保护、逐波限流 Off-grid voltage, grid-connected relay voltage, grid voltage sampling, grid & GT； current, inverter voltage, inverter current, over-current protection, wave-by-wave current limiting
> DCAC_VGS_H2_EN 检测 Check > PV1 电压 Voltage、PV2 电压 Voltage
> VGS_H1_EN 检测 Check > PV1 电流Currents PV2Current
> PV_PV1_BOOST_PWM4A 检测 Check > pv 绝缘阻抗、风机电源、风机故障 I你是要拉提哦那impedance,fan ower supply,fan failure
> PV_PV1_BUCK_PWM4B 检测 Check
> PV2_BUCK_PWM6B 检测 Check
> PV2_BOOST_PWM6A 检测 Check
> PV3_BUCK 检测 Check
> PV3_BOOST 检测 Check
